Storm motion nomogram

[Tim Vasquez]

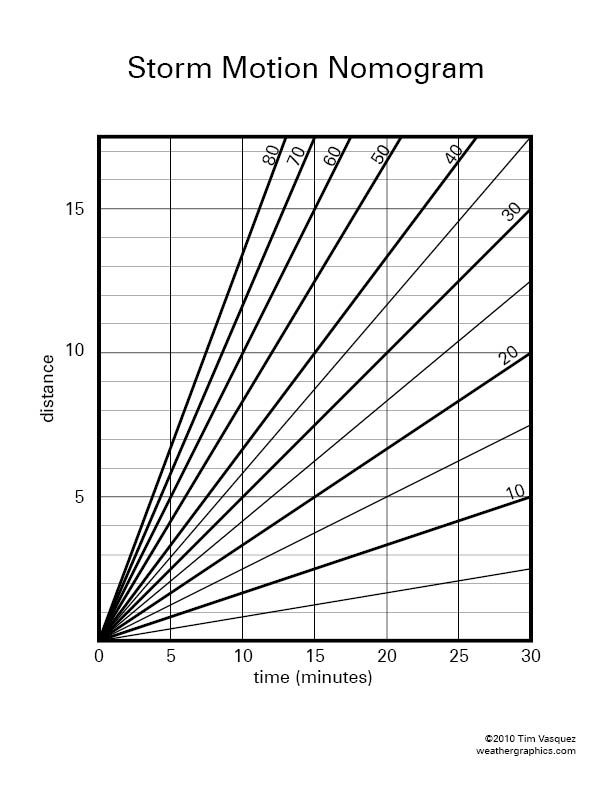

While analyzing storms on radar I've sometimes had trouble quickly working up accurate estimates of motion. I found errors could crop up if I was juggling numbers in my head while doing ten other things. There wasn't a distance/time/speed diagram that I could find on the Internet so I went ahead and created one today.

Downloadable PDF:
http://www.weathergraphics.com/tim/storm-motion-nomogram.pdf

Feel free to download and use it if you find it useful. The units of distance and speed are not specified since it works for either nm/kt, sm/mph, or km/kmh.

Tim



[rdale]

Should your "speed" axis be labeled "distance" instead?



[Tim Vasquez]

Yikes, good catch.. fixing it now.



[rdale]

Took me a few minutes to figure out what you were trying to accomplish before I realized that Handy chart - thanks!



[Jason Foster]

LOL Tim...I have a laminated cards I took with me on chases, one of which is this same kind of thing...but a chart rather than a graph. I have one for gas usage, and even a reminder card of what shots I need to get throughout the chase & when to do dialysis (so glad I don't need that card anymore), I only used them once in 2006. But studying the cards did get the info in my head better.



[Greg Higgins]

Thanks for your time and work Tim!
