beaudodson
EF5
I grabbed these on Friday Night. What an incredible storm.
Incredible Gibson Ridge AE Radar Grabs...Kansas EF5 Twister
- Thread starter beaudodson
- Start date
beaudodson
EF5
beaudodson
EF5
beaudodson
EF5

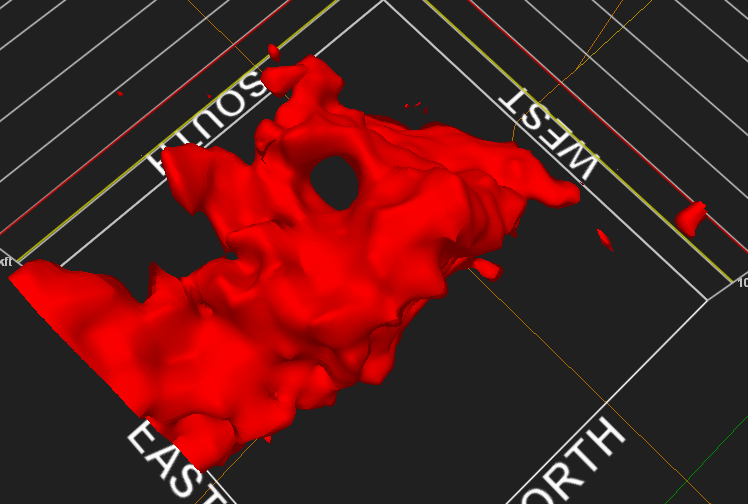

This one from Baron is amazing as well...the numbers - this was right before it made the turn to the left
Jim Zandonai
Fantastic shots..the programs these days esp. GRAE2 is remarkable..Thanks
beaudodson
EF5

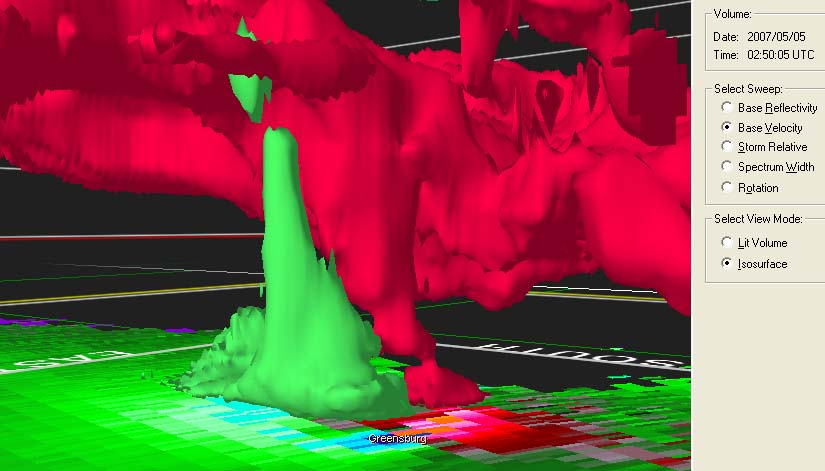

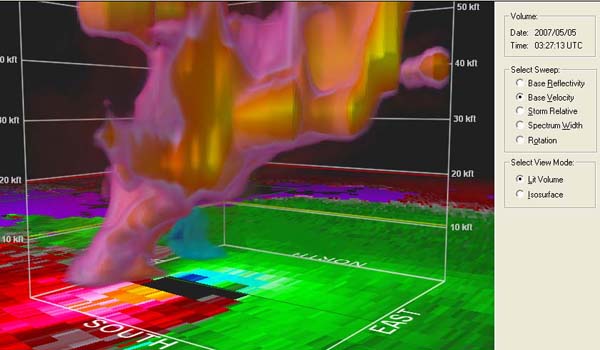

Another grab from Mike Gibson (owner of the software) Here's a volume BR animation of the Greensburg tornado (looking down from above):
The isovalue was around 55dbz. Note the well-formed tube in the first half of the animation. On the third frame, you can see the "Greensb.." part of the name. After crossing Greensburg, the tube fills in somewhat due to debris and a change in the rotation strength. Amazingly, the tube became even more impressive in subsequent volumes. (paste from Mike)
The isovalue was around 55dbz. Note the well-formed tube in the first half of the animation. On the third frame, you can see the "Greensb.." part of the name. After crossing Greensburg, the tube fills in somewhat due to debris and a change in the rotation strength. Amazingly, the tube became even more impressive in subsequent volumes. (paste from Mike)
